STRATASYS J35 PRO 3D PRINTER

Desktop PolyJet Prototyping
3D Printers from GoEngineer are Available in the U.S.  Now Serving US & Canada  3D Printers from GoEngineer are Now Available in Canada


Versatile In-house 3D Printing

The compact, affordable Stratasys J35 Pro brings engineering-grade, multi-material 3D printing to places it's never been before. The J35 Pro can produce prototypes, parts and models to meet the needs of a wide range of industries, including automotive, aerospace, consumer electronics, medical devices and more.

Before we had the J35 Pro, we would spend lots of time communicating, preparing models. The entire process took weeks and lots of testing — and it did not always work. With our current in-house possibilities, we get most printing jobs done overnight and get many working models to share with our customers.”

– Yaniv Adir, Taga

Stratasys J35 3D Printer

1. Multi-Material Printing

Print with three materials separately or simultaneously to create concept models, jig, fixtures, or functional prototypes.

2. Affordable Realism

Design realistic parts and prototypes with an all-in-one, multimaterial 3D printer. The J35 Pro is a low cost investment compared to comparable PolyJet multi-material printers.

3. Office-Friendly

The J35 Pro is an engineering grade printer, with a small footprint and silent and odor-free operation.

4. Simple Workflow

Leverage a diverse selection of workflow tools to streamline design powered by GrabCAD print, including cloud-based service, print to click (Keyshot), on demand training, and more.

5. Always Reliable

The J35 Pro is a highly reliable printer that needs little maintenance.

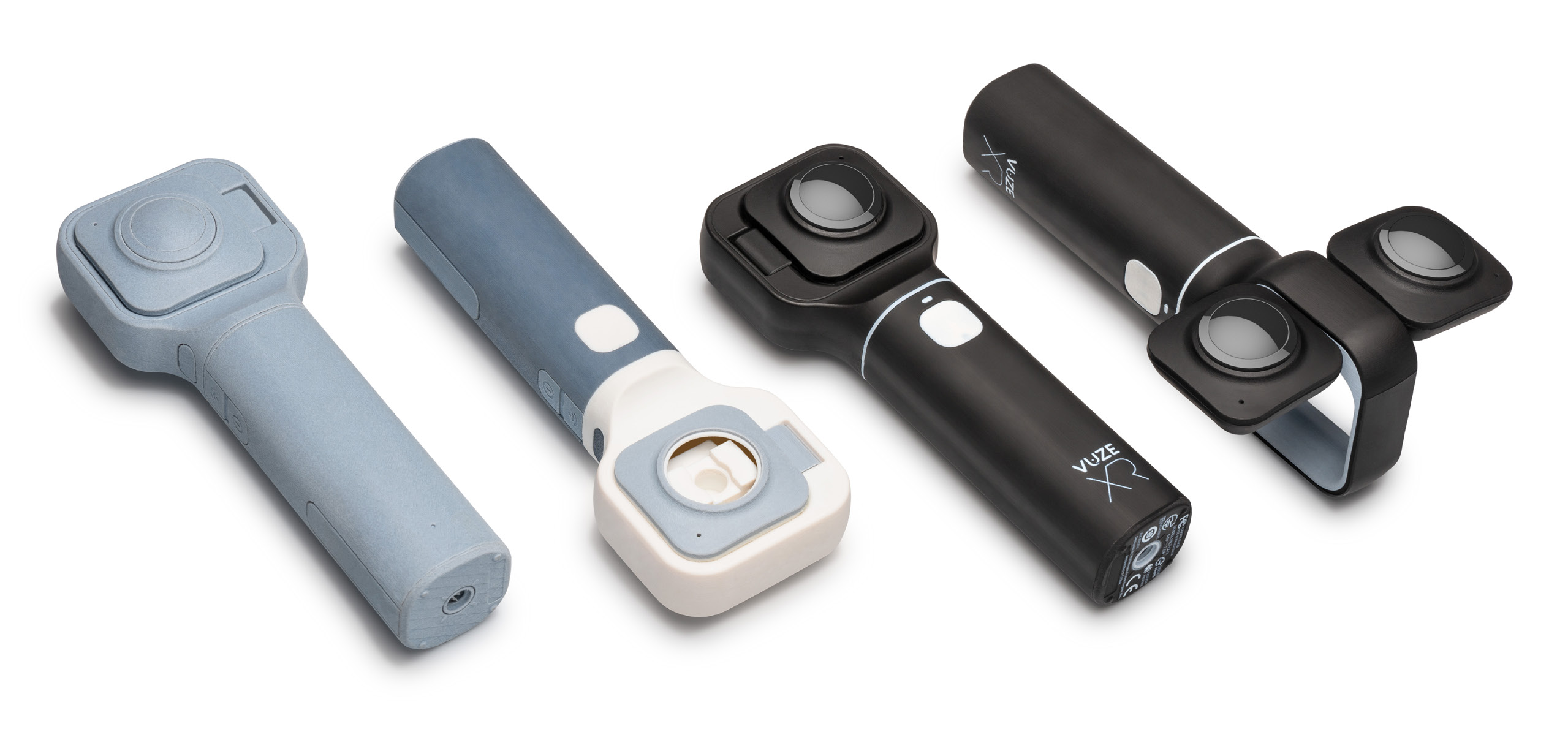

Improve the design process

Reduce time spent on manual models, iterate designs fast and save money by bringing 3D printing in-house. Designers and Engineers can produce polished and thoroughly tested prototypes without sacrificing speed.

The Stratasys J35 Pro 3D printer Available from GoEngineerprints detailed designs


The Stratasys J35 Pro 3D printer available from GoEngineer features a simple workflow powered by GrabCAD Print.

Intelligent Workflow

The J35 utilizes GrabCAD Print to present users with a simpilified workflow. Benefits include:

  • Automatic File Fixing
  • All CAD Formats Accepted
  • Print Management and Delayed Prints
  • Regular Monthly Updates
  • Vast Multi-Material Print Capabilities







Impressive prototypes

The J35 Pro's PolyJet technology enables you to incorporate the widest variety of colors and materials into a single model. Create smooth, detailed prototypes that convey final-product aesthetics. Produce accurate jigs, fixtures, functional parts, concept models and more. Plus, achieve complex shapes, intricate details and delicate features.

The Stratasys J35 Pro 3D printer available from GoEngineer produces realistic prototypes.

Sample 3D Printed Part Using VeroUltra Stratasys 3D Printing Material



VeroUltra

VeroUltra WhiteS, VeroUltra BlackS, & VeroultraclearS

  • Impressive contrast and color separation
  • Smooth color transition
  • Can be combined with various materials
  • Superior capacity application

Potential applications:

  • Toy & figurine production
  • Consumer electronics
  • Packaging
  • Consumer goods



VERO

Realistic & Vibrant Colors

  • Multi-purpose, multi-color family of materials | CMYKBWV
  • Good stiffness and strength
  • lend together or with other materials to change properties

Potential applications:

  • Visually realistic prototypes
  • Fit, form, and function prototypes
  • Surgical models
  • Jigs, fixtures, & tooling



DraftGrey PolyJet 3D Printing material



Draftgrey

  • Inexpensive
  • Rigid material
  • High-speed concept modeling

Potential applications:

  • Early stage prototypes
  • Concept modeling
  • Design prototyping



Stratasys Elastico PolyJet 3D Printing Material



Elastico

Clear & Black

  • Rubber-like
  • Tear-resistant
  • Flexing and bending

Potential applications:

  • Tooling
  • Sporting goods
  • General prototyping



Digital ABS Plus PolyJet 3D Printing material



Digital ABS Plus

Simulated ABS

  • Most mechanically robust PolyJet material
  • Combines temperature resistance with toughness
  • Good impact strength
  • 2 material blend

Potential applications:

  • Design verification
  • Functional testing
  • Jigs & fixtures
  • Manufacturing tooling



Model Materials
  • VeroUltra™ ClearS
  • VeroUltra™ BlackS
  • VeroUltra™ WhiteS
  • DraftGray™
  • D-ABS Plus™
  • Elastico™ Black
  • Elastico™ Clear
  • Vero™ ContactClear
Support Materials

SUP710™
WSS™ 150

Build Size

140 x 200 x 158mm
(5.51 x 7.87 x 6.22 in.)
Up to 1,174 cm²

Layer Thickness

Horizontal build layers down to 18 microns (0.0007 in.)

Workstation Compatibility
Windows 10
Network Connectivity
LAN - TCP/IP
System Size and Weight

651 x 661 x 774mm* (25.63 x 26.02 x 30.48 in.); 98 kg (216 lbs.)

Operating Conditions

Temperature 18-25 °C (64-77 °F); relative humidity 30-70% (non-condensing)

Power Requirements

100–240 VAC, 50–60 Hz, 10A, 1 phase

Regulatory Compliance

CE, FCC, EAC, cTUVus, CB

Software

GrabCAD Print

Build Modes

High-Quality Speed: 18.75um

Accuracy
  • Deviation from STL dimensions, for 1 Sigma (67%) of models printed with rigid materials, based on size: under 100 mm – ±150μ; above 100 mm – ±0.15% of part length.**
  • Deviation from STL dimensions, for 2 Sigma (95%) of models printed with rigid materials, based on size: under 100 mm – ±180μ; above 100 mm – ±0.2% of part length.**

* The printable height is 158 mm and the max printable model height is 155 mm .
** Measured when ambient temperature is 23 °C and relative humidity is 50%.

GrabCAD Print powers Strataysys 3D printers. Learn More with GoEngineer.

GrabCAD Print

GrabCAD Print makes 3D printing easy, with thoughtful features:

  • Automatically corrects files and reduces print time with automatic tray arrangement.
  • Calculates the time and material resources needed for production before printing.
  • 3MF file supported – significantly simplifies color assignment in your workflow.
  • New feature alerts the user if there has been cross-contamination with a biocompatible material.
  • Schedule and monitor the print job remotely from your mobile device or browser.
  • Get automatic alerts remotely when the job is printing and finished.
