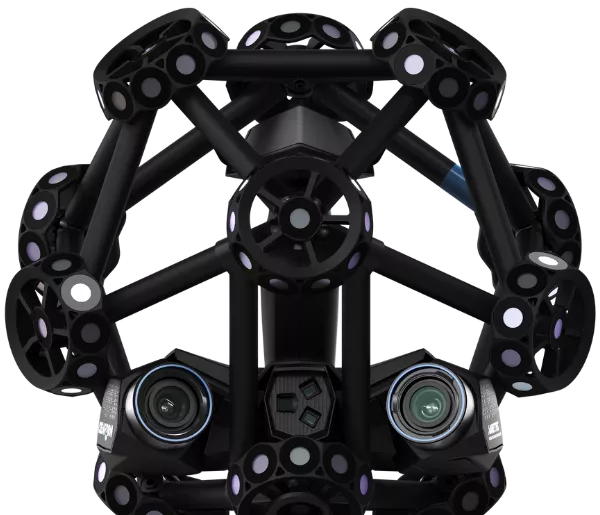

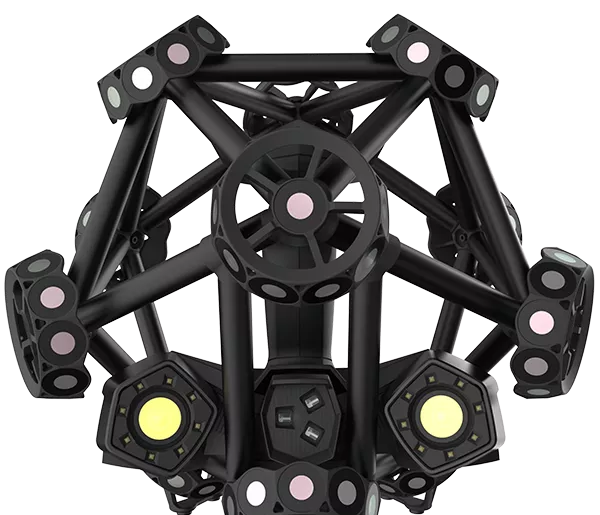

Creaform MetraSCAN 3D

Optical CMM scanner metrology-grade measurement system

What is Creaform’s Metrascan System?

The MetraSCAN 3D™ optical CMM scanner is the ideal solution for shop-floor inspection or reverse-engineering needs. At the core of the Creaform optical CMM is the C Track optical tracker with its ability to perform real-time dynamic referencing of the MetraSCAN and HandyPROBE devices as well as targets on a part. Built with high-end optical components, the C-Track drives the metrology-grade measurements of the whole system.



Creaform Creaform MetraSCAN 3DAvailable from GoEngineer

Scanning and Probing support

One of the most powerful advantages of a metrology-grade measurement system is the ability to both scan and take contact or optical probe measurements, providing versatility of use. The system’s scanning and probing capabilities can be used independently or integrated into the measurement workflow.

Extendable Measurement Volume

Flexible measurement volume allows the user to move the C Track and measured part dynamically to capture all the required data instead of a rigid setup that would limit the amount of data collection and require leapfrogs, potentially adding the loss of accuracy between moves.

ADD-ONS

Max Shot 3D Photogrammetry. Creaform’s Max Shot 3D System can be integrated for product development, manufacturing, quality control, and inspection teams that need the highest measurement accuracy and repeatability as much for large scale projects than for parts from 2 to 10 m. achieving an accuracy of 0.015mm/m or better.

Dynamic Referencing

The Dynamic Referencing capability allows for freedom of movement without the necessity of having a rigid setup. The C-Track tracks the targets in its 16.6m^3 volume in real-time allowing for vibrations commonly found on shop floor environments. This also allows for the C-Track to move around the part and extend the volume by acquiring additional targets to the scene or working volume. This amounts to greater flexibility in the setup of the measurement workflow which leads to substantial time and cost savings.

Dynamic Referencing Feature Available with the Creaform MetraSCAN 3D Metrology System

Creaform MetraSCAN 3D CMM system has shop floor accessories available

ACCESSORIES

The Creaform Shop-Floor Workstation is designed to ensure optimal manufacturing performance when using Creaform’s dimensional inspection devices in production environments. It incorporates all the tools you need in one workstation and offers secure storage for all Creaform 3D measurement technologies (portable 3D scanners, portable CMM, photogrammetry system, and related accessories).  By adding flexibility, mobility, and reliability to Creaform’s systems across a production plant while being in operation, the workstation improves efficiency, productivity, and the overall quality assurance process on the shop floor.

Stand-alone or bundled with the workstation, the C-Track Shop-Floor Stand facilitates the mobility of the C-Track around the part to be inspected while running. Once mounted on the stand’s extendable pole, the C-Track dual-camera sensors can reach a height of 1.9 m (73 in.) to accommodate high and low inspection set-ups.  Also fitted with locking wheels and retractable legs, the stand can easily adapt to static use. Paired with the Self-Power Kit (external battery), move the C-Track Shop-floor Stand from one place to another without worrying about temperature stabilization time when shutting down/restarting the C-Track and controller. Along with the workstation, it provides a complete solution for a real-time manufacturing quality control process.



Specifications for the Creaform MetraSCAN 3D Scanner

METRASCAN 750™
METRASCAN 750™|ELITE
Accuracy
Up to 0.030 mm (0.0012 in.)
Volumetric Accuracy 9.1 m3 (320 ft3) (3)
0.086 mm (0.0034 in.)
0.064 mm (0.0025 in.)
16.6 m3 (586 ft3) (3)
0.122 mm (0.0048 in.)
0.078 mm (0.0031 in.)
Volumetric Accuracy (with MaxSHOT 3D or C-Link) MaxSHOT Next™
0.060 mm + 0.025 mm/m
(0.0024 in + 0.0003 in/ft)
0.044 mm + 0.025 mm/m
(0.0017 in + 0.0003 in/ft)
MaxSHOT Next™|Elite
0.060 mm + 0.015 mm/m
(0.0024 in + 0.00018 in/ft)
0.044 mm + 0.015 mm/m
(0.0017 in + 0.00018 in/ft)
Resolution
0.050 mm (0.0020 in.)
Measurement Rate
480,000 measurements/s
Part Size Range (recommended)
0.2–6 m (0.7–20 ft.)
Stand-off Distance
300 mm (11.8 in.)
Depth-of-field
200 mm (7.9 in.)
Scanning Area
275 x 250 mm (10.8 x 9.8 in.)
Light Source
7 laser crosses (+ 1 extra line)
Laser Class
2M (eye-safe)
Weight
1.38 kg (3.0 lbs.)
Dimensions
289 x 235 x 296 mm (11.4 x 9.3 x 11.7 in.)
Connection Standard
1 x USB 3.0
Software
VXelements™
Output Formats
.dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr
Operating Temperature Range
5–40°C (41–104°F)
Operating Humidity Range (non-condensing)
10–90%
Certifications
EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive, RoHS 2 Substance Restrictions Directive), IP50, WEEE

VXelements Software for Creaform GoSCAN 3D Scanner

VXELEMENTS

3D SCANNING SOFTWARE PLATFORM

Creaform’s VXelements provides a fully integrated 3D software platform that powers the entire fleet of 3D scanning and measurement technologies. It gathers all the essential elements (VXscan, VXprobe, VXshot) and tools into a user-friendly, simple, and sleek working environment.









ADDITIONAL Software
The Elite versions of the system have a volumetric accuracy of .064 mm.
Yes, the smart probe adapters allow the system to detect a change in probes.
Yes, but having both scanning and probing ability allows for significant measuring advantages.
