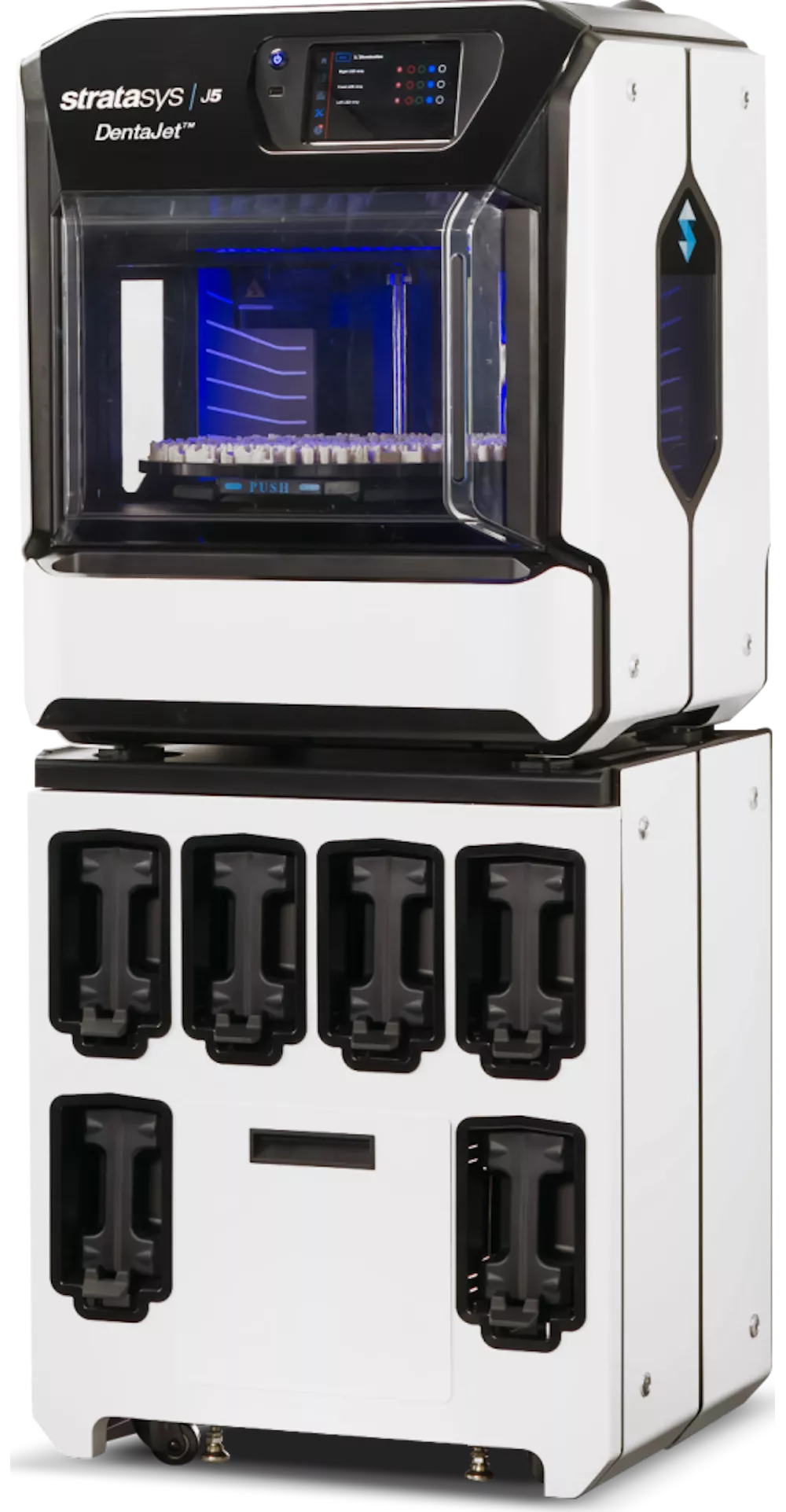

STRATASYS DentaJet XL
High-Volume 3D Printing for Dental Labs
Now Serving US & Canada
Print more, Work Less
Level-up your dental lab with the fastest, most accurate low-labor production machine from Stratasys. The DentaJet XL™ delivers unparalleled efficiency and cost-effectiveness for dental model production, with up to 67% lower cost per part and 70% fewer manual touchpoints. With a small footprint and large-capacity rotating print tray, the DentaJet XL is designed to maximize efficiency, producing more dental parts faster with fewer material changes.
Features
Unlock Growth
Precision meets productivity. Unlock faster turnaround and exceptional accuracy with a 3D printer built for high-volume dental labs.
Unmatched Accuracy
One tray. Multiple materials. Maximum precision. Print full implant cases with unmatched clarity and efficiency and two materials simultaneously.
High Speed Precision
Produce precise aligner arches at high volumes with industry-leading print speeds.
Decrease Labor, Increase Production & Safety
Reduce manual labor and improve safety with smart automation, fewer touchpoints, and effortless post-processing.
Maximize Production Capacity

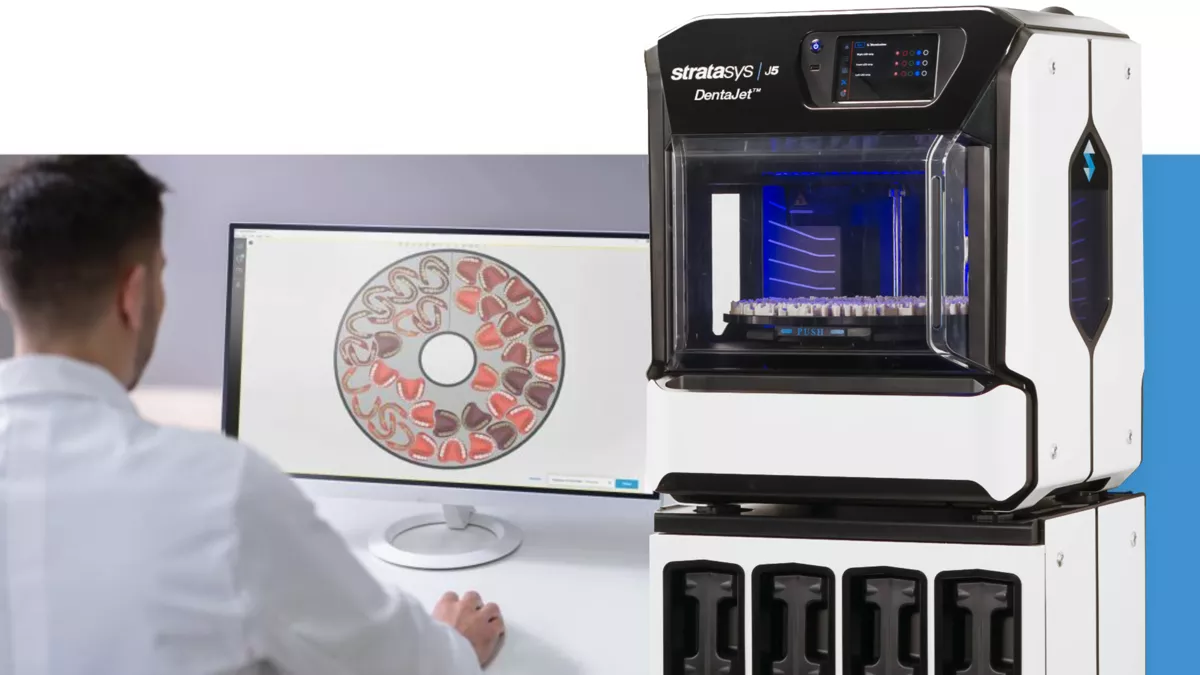

The DentaJet XL exhibits a 360-degree, full-circle print tray delivering more parts in greater quantities. Experience 30% faster build times with Super High Speed mode , enhancing productivity for all dental labs.
High-Volume Dental Solutions
Accurate and efficient 3D printing applications built for the modern dental lab:

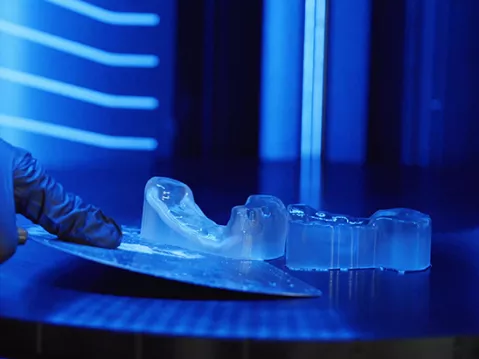

Implant Cases: Print up to 16 implant models and surgical guides in just 6.5 hours, ensuring consistent, professional results.

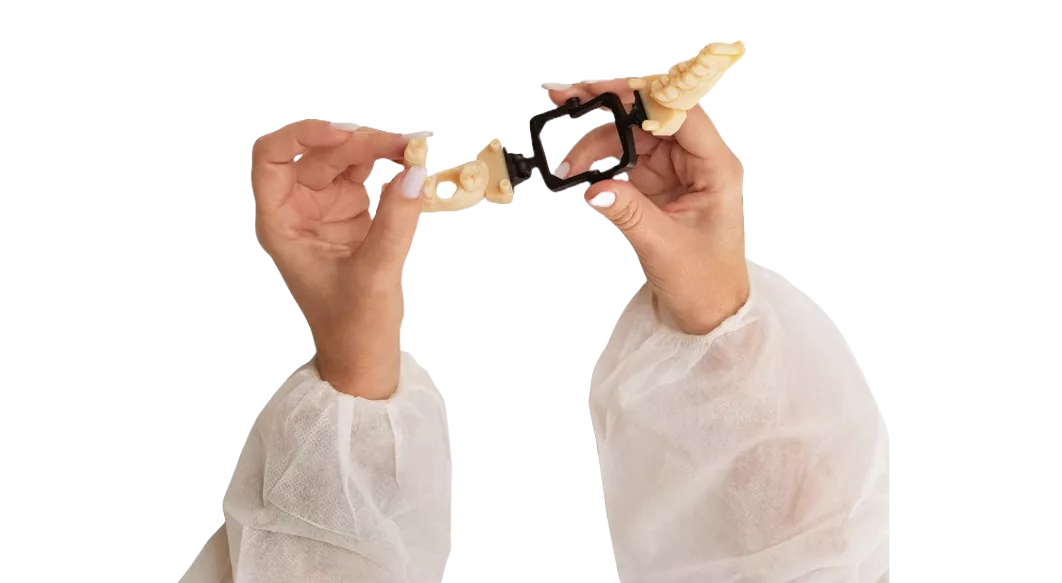

Crown and Bridge: Produce large volumes of precise crown and bridge models at lightning speed, with the ability to print up to 102 models in a mere 4.5 hours.
Clear Aligner Models: Increase your lab's capacity and streamline production with Super High Speed printing. Produce up to 36 arches in ~2 hours.
Integrated Curing for Flawless Accuracy
Leveraging high-resolution printing and complete in-process curing, the DentaJet XL eliminates post-processing distortions, resulting in components with unmatched accuracy.
Dentajet XL Materials
|
|
VeroGlaze MED620
Opaque rigid biocompatible dental resin
VeroGlaze™ MED620™ is a biocompatible dental resin designed for various applications in the field of restorative and orthodontic dentistry. With its rigid and opaque properties, this resin offers exceptional dimensional stability and accuracy. It is ideal for printing restorative and orthodontic models, custom impression trays, and try-ins. Moreover, VeroGlaze™ MED620™ is suitable for applications that involve prolonged skin contact exceeding 30 days, as well as short-term mucosal membrane contact of up to 24 hours.
Features:
- Biocompatible (ISO 10993-1 certified)
- Flexural strength: 75-110 Mpa
- I ZOD impact notched 20-30 J/m
- HDT 45-50°C
- Tensile strength 50-65 MPa
- Color: Light Ivory (A2 shade)
Clear MED610
Transparent rigid biocompatible dental resin
Clear MED610™ is a biocompatible dental resin known for its rigidity and transparency, offering excellent dimensional stability. It is specifically designed for 3D printing surgical guides and removable partial denture casting patterns. This resin is suitable for applications that require prolonged skin contact exceeding 30 days, as well as short-term mucosal membrane contact of up to 24 hours. With its biocompatible properties, Clear MED610™ provides a reliable and versatile solution for dental applications.
Features:
- Biocompatible (ISO 10993-1 certified)
- Flexural strength: 75-110 Mpa
- IZOD impact notched 20-30 J/m
- HDT 45-50°C
- Tensile strength 50-65 MPa
- Color: Clear
Clear MED625FLX
FLexible Transparent biocompatible dental resin
MED625FLX™ is a biocompatible dental resin known for its flexibility and transparency. This resin is specifically designed for 3D printing orthodontic independent bonding trays and implant gingival masks. With its exceptional flexibility, it offers a reliable solution for creating precise and comfortable dental appliances. MED625FLX™ is suitable for applications that require prolonged skin contact exceeding 30 days, as well as short-term mucosal membrane contact of up to 24 hours. Its biocompatible properties make it a trusted choice for a range of dental applications.
Features:
- Biocompatible (ISO 10993-1 certified)
- Shore A Hardness 73-77
- Elongation at Break 45-55%
- Tensile strength 3.0-5.0 MPa
- Color: Clear
VeroDent PureWhite DEN847
Bright white dental modeling resin
VeroDent PureWhite is a bright white photopolymer used either as a standalone material or as a foundation for creating realistic full-color models when combined with the Vero Vivid Color Family. This versatile resin provides excellent stiffness and enables the production of highly detailed and accurate models. It is specifically designed for 3D printing restorative and orthodontic models, ensuring reliable and precise results. Whether used on its own or in combination with other colors, VeroDent PureWhite offers outstanding quality and performance in dental applications.
Features:
- Excellent detail visualization
- Flexural strength: 75-110 Mpa
- IZOD impact notched 20-30 J/m
- HDT 45-50°C
- Tensile strength 50-65 Mpa
- Color: White
Compare Stratasys Dental 3D Printers
| All cases on 1-tray, high-efficiency printer with a smaller footprint for small to medium dental labs. | All cases on 1-tray, high-efficiency & cost-effective printer with a smaller footprint for all dental labs and model production. | All cases on 1-tray, high-efficiency printer with a smaller footprint for all dental labs. | High throughput DLP solution utilizing P3 Technology with a small footprint that is optimized for accurate and quick prints for multiple applications. | |
| Applications |
Dental tooling (small-medium volume):
|
Dental tooling (high-volume):
|
Dental tooling (high-volume):
|
Dental Tooling (high volume):
Dental end user parts (high volume):
|
| Model Materials |
|
|
|
|
| Max Materials |
3 | 2 | 5 | 1 |
| Support Material | SUP711 (Waterjet removable) | SUP711 (Waterjet removable) |
SUP711 (Waterjet removable) |
N/A |
| Software | GrabCAD Print | GrabCAD Print | GrabCAD Print | Fusion 360 with Netfabb Premium |
| Cartridge Capacity |
1.1kg | 4kg | 1.1kg | N/A |
| Tray Size and Area |
Round Print Tray with up to 1.174 cm2 | Round Print Tray with up to 1,174 cm2 | Round Print Tray with up to 1,174 cm2 | 192 x 108 x 370 mm (7.5 x 4.25 x 14.5 in) 205 cm2 |
| System Size and Weight |
651 x 661 x 774mm (25.63 x 26.02 x 30.48 in.); 98 kg (216 lbs.) |
650 x 1520 x 660 mm (25.6 x 59.8 x 26 in); 199 kg (439 lbs.) |
651 x 661 x 1511mm (25.63 x 26.02 x 59.49 in.): 228 kg (503 lbs) |
490 x 5110 x 1130 mm (19 x 20 x 44 in) 81 kg (180 lbs) |
| Technology | PolyJet | PolyJet | PolyJet | Programmable PhotoPolymerization P3 (Digital Light Processing) |
Stratasys DentaJet XL Specifications
BIOCOMPATIBLE Materials
- Biocompatible Clear MED610™
- VeroGlaze™ (MED620)
- Flexible clear biocompatible material MED625FLX™
- VeroDent™ PureWhite (DEN847)
Support Materials
SUP711™ (Water Jet removable)
Build Size
Up to 1,174cm²
Max Part Size: Up to 140 x 200 x 190mm (5.51 x 7.87 x 7.48in.)
Layer Thickness
Horizontal build layers down to 18 microns (0.0007 in.)
Workstation Compatibility
Network Connectivity
System Size and Weight
System: 651 x 661 x 1511mm (25.63 x 26.02 x 59.49 in.); 228 kg (503 lbs.)
Operating Conditions
Temperature 18-25 °C (64 -77 °F); relative humidity 30-70% (non-condensing)
Power Requirements
100 -240 VAC, 50 - 60 HZ, 10A, 1 phase
Regulatory Compliance
CE, cTUVus, FCC, Industry Canada, RCM
Noise: 67 dB
Software
GrabCAD Print
Build Modes
High Quality High Speed (HQHS) - 20.625μ
Super High Speed (SHS) - 61.875μ
(for aligner arches only)
Software
GrabCAD Print
GrabCAD Print makes 3D printing easy, with thoughtful features:
- Automatically corrects files and reduces print time with automatic tray arrangement.
- Calculates the time and material resources needed for production before printing.
- 3MF file supported – significantly simplifies color assignment in your workflow.
- New feature alerts the user if there has been cross-contamination with a biocompatible material.
- Schedule and monitor the print job remotely from your mobile device or browser.
- Get automatic alerts remotely when the job is printing and finished.
