SOLIDWORKS CAD Stalls at Loading Task Planes

Article by David Cersley on May 13, 2019

The sun is out, and you can see a half day in your future. First, we’ve got a design review, so with coffee in hand, you sit down at your computer and go to start SOLIDWORKS — OMG! It won’t load. It’s hung up!

What do you do? Relax. Using the following steps, we are going to have you up and running in no time flat.

What Happened?

The SOLIDWORKS software does an outstanding job of keeping track of added customizations. On occasion, however, a Windows or anti-virus software update alters the registration files that SOLIDWORKS requires for the startup. When this happens, one way to fix it is to reset the registry.

What is the registry and how do we reset it?

The registry includes all the options and customizations that the user has defined. These customizations can be short cut keys, library folders, file locations, custom toolbars, or any system option the user defines. By creating a new registry, you are telling SOLIDWORKS to go back to its default setting, as if you were doing a brand new install.

First step:

Make sure SOLIDWORKS is closed (and not trying to load). The registry is controlled by the computer’s operating system. Make sure to save all your work. Backup all files on your C drive (C:) and desktop.

Second step:

In the search box on the taskbar (circle at the bottom left of your screen), click on the circle and type regedit.

registry editor

Then select the top result for Registry Editor (the blue falling apart Rubix cube).

start windows start button

A secondary option is to press and hold or right-click the Start Windows logo Start button, then select Run. Enter regedit in the Open box and select OK

 Registry editor screen pops up:

registry editor third step

Third Step:

registry editor step 3

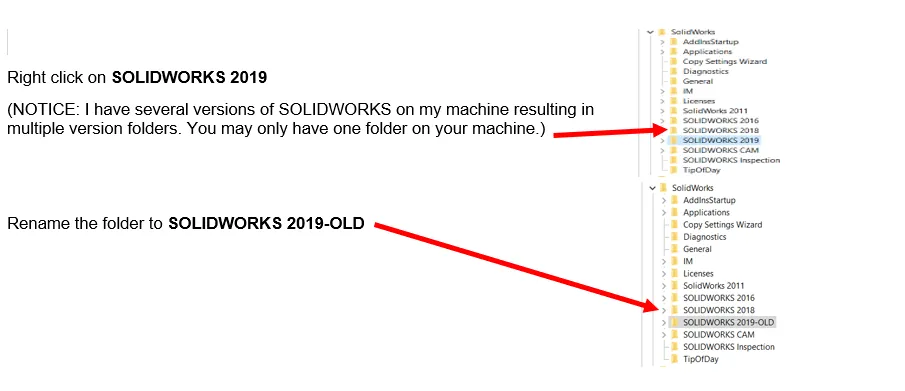

 Fourth Step:

registry editor screen

Fifth Step:

solidworks new registry

By completing the steps above, it forces SOLIDWORKS to create a new registry just like when we first installed SOLIDWORKS. This will reset all the customizations and direct file paths you had saved.

Sorry for the loss, but you’re up and running now, right?

solidworks folder registry

If we go back and start REGEDIT, you will notice that there is a new SOLIDWORKS 2019 folder and a SOLIDWORKS 2019-OLD folder. When we restarted SOLIDWORKS, it looked for the latest registry folder. It was not there, so SOLIDWORKS created a new registry.

If you want, you can delete the SOLIDWORKS 2019-OLD folder; the software is no longer pointing to this folder at startup to look for customizations.
