Article by Jamar McDonald on Dec 15, 2025

The systems engineering community is enamored with Systems Modeling Language (SysML) Version 2, and rightfully so. SysML V2 provides a host of benefits over SysML V1, but it can be difficult to capture the benefits in a way that people new to the subject can understand. This article captures the high-level benefits of SysML V2 without getting overly technical, allowing a fluid introduction into the topic.

SysML V2 Objectives

The main objective of SysML V2 is to increase the adoption rate and effectiveness of model-based systems engineering (MBSE). The new version of the language enhances the precision and expressiveness of the language, while also expanding interoperability with other engineering models and tools. This represents more than just an update; it marks a fundamental shift in how systems engineers develop and maintain models throughout their lifecycle. The increased expressiveness built into SysML V2 provides immediate value that addresses long-standing limitations in MBSE using SysML V1. The expanded interoperability supports the vision that systems models become a fully integrated part of the digital thread.

SysML V2 Objectives Next Generation Systems Modeling Language

Key Elements of SysML V2

A Better Language for Describing Systems

SysML V2 provides a more precise and expressive language for systems engineering than SysML V1 through the use of a new metamodel: KerML. Unlike UML, KerML is a language independent of any discipline. This allowed for more freedom in creating SysML V2 as a more consistent, precise, and intuitive language. It follows a more specific “definition and usage” pattern, using common language that will enable faster onboarding for engineers and faster review by external stakeholders.

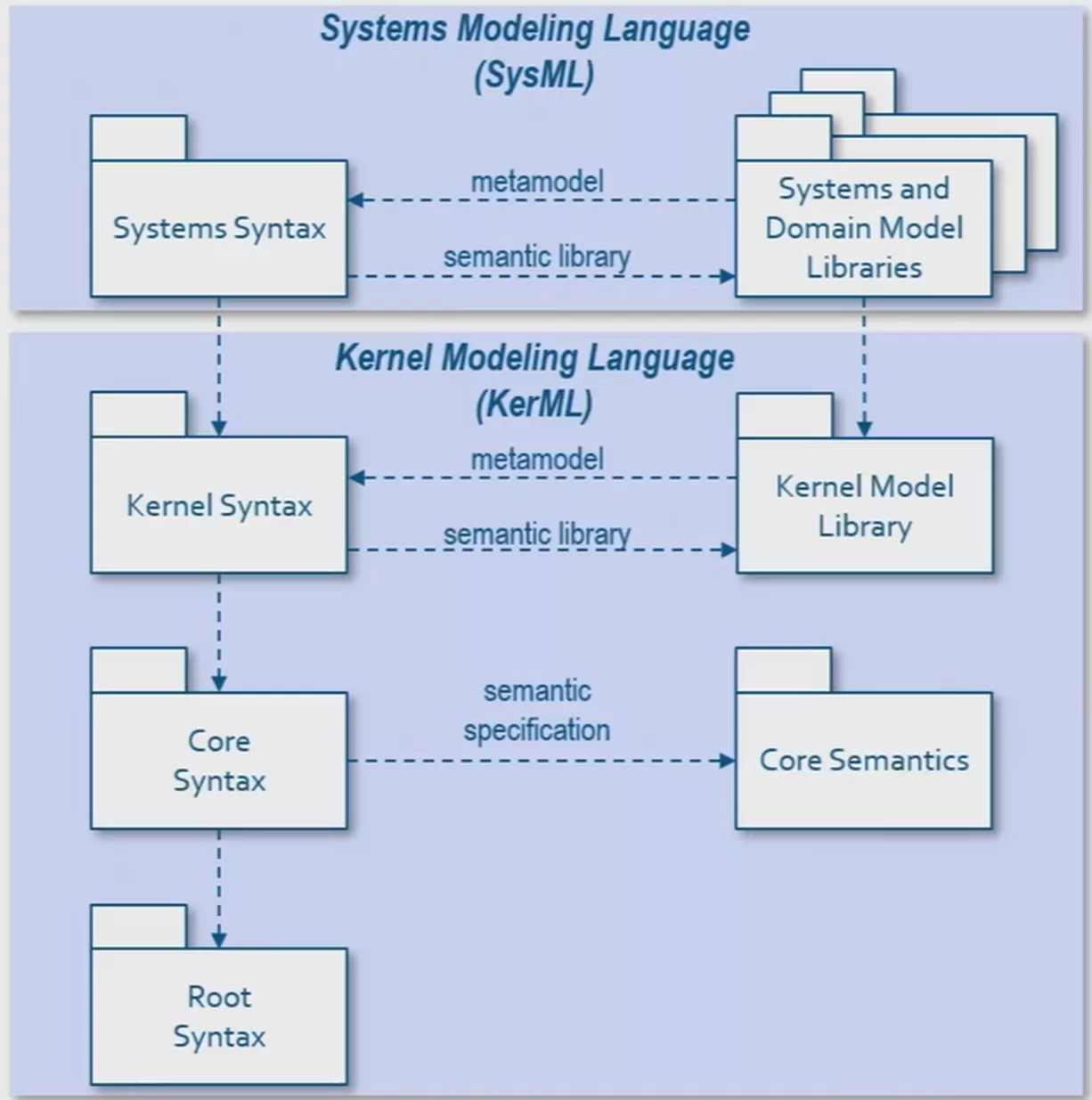

A Key Element of SYSML V2 is a Better Language for Describing Systems

Additionally, behavior and structure are more tightly integrated, allowing for a more accurate blueprint when modeling. Although it is version 2, it is best to think of this as an entirely new language that will transform the way systems engineers model.

True Interoperability

Using the KerML metamodel, SysML V2 now introduces a standardized API. This is critical as it allows any other tool or software application to interface with the SysML V2 modeling tool. Analysis, geometry, visualization, and other tools will be able to pull data out, put data in, or modify data in the SysML V2 model repository. This is critical as companies strive for a true “ digital thread” across their engineering lifecycle.

Enhanced Usability and Expressiveness

SysML V2 introduces textual notation as a new mechanism for using and expressing models. The new textual editor is simply a new way of rendering the same underlying model in the containment tree. This new textual editor will allow users who are familiar with coding to more easily understand SysML V2. In addition, the new “.sysml” data exchange allows for the importing and exporting of model data through textual notation. Model structure and behavior can easily be duplicated in other models using a simple copy and paste of the textual syntax.

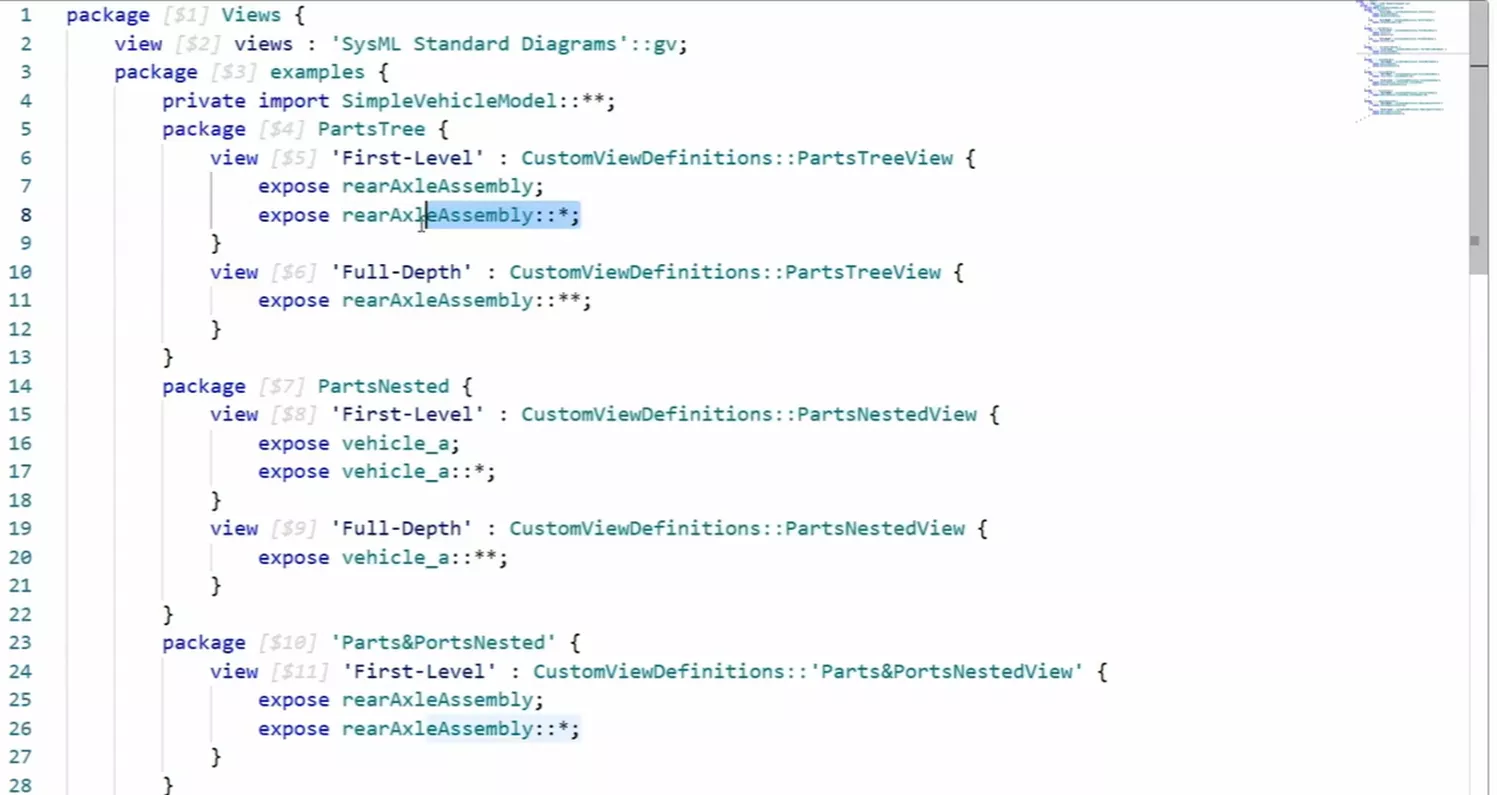

Benefits of SYSML v2 Include Enhanced Usability and Expressiveness

Learn More in This Talk

The foundational purpose of model-based systems engineering is to accurately capture systems’ information in a single source of truth managed throughout the lifecycle of the system. SysML V2 provides the standardized framework needed to fully achieve this goal. By investing in SysML V2 integration, companies, stakeholders, and engineers can bring automation, productivity, and formal verification to new heights. The video below provides greater details on all the possibilities with SysML V2.

SysML V2 in No Magic Cameo & CATIA Magic

With the new 2026 release of No Magic Cameo & CATIA Magic, the following bundles of Dassault Systèmes’s MBSE products now support SysML V1 and SysML V2 for project modeling:

No Magic Cameo *No Magic MBSE portfolio for defense industry*	CATIA Magic No Magic MBSE portfolio for general industry
Cameo Enterprise Architecture Model operational missions of distributed systems	Magic System of Systems Architect Model operational missions of distributed systems
Cameo Systems Modeler (Enterprise Edition) Model systems’ functional and structural architectures	Magic Cyber-Systems Engineer Model systems’ functional and structural architectures

Within the No Magic portfolio, Cameo Systems Modeler (Architect Edition) and MagicDraw with the SysML Plugin will not gain access to SysML V2 upon the upgrade to 2026x.

Additionally, the bundles that support SysML V2 will see a price increase of around 20% on January 1st, 2026. If you are looking to upgrade this quarter or are expecting growth soon, please contact us to discuss a path forward.
