STRATASYS J55 PRIME 3D PRINTER

PolyJet Prototyping to Fit Your Workspace

DESIGNED TO FIT YOUR WORKSPACE

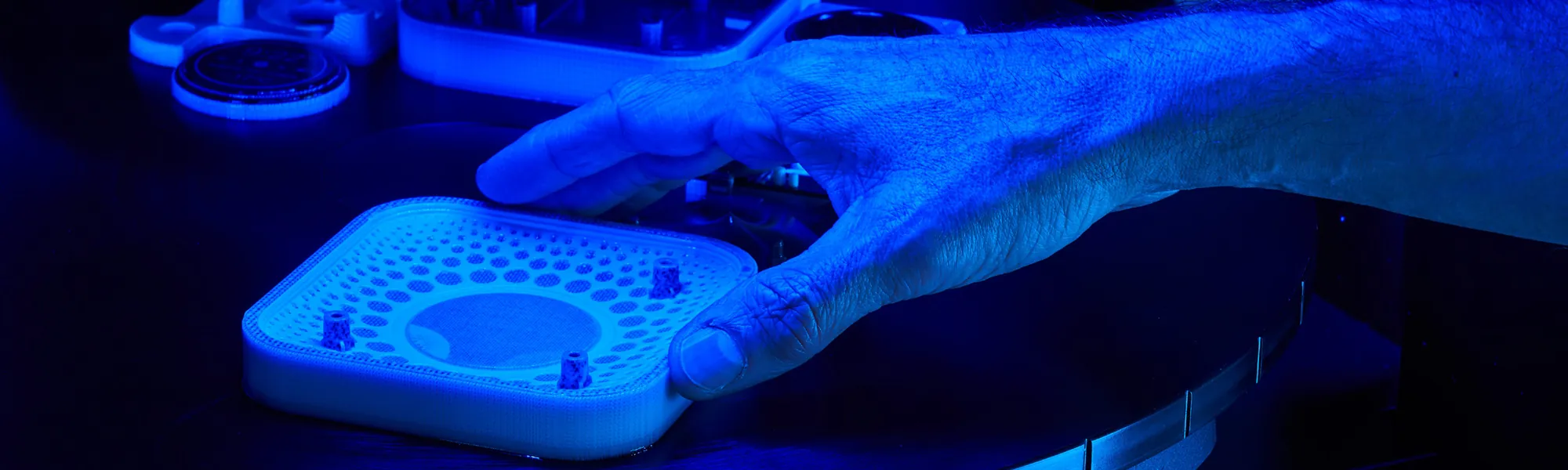

From perfecting products to applying concepts learned in the classroom, the Stratasys J55 Prime 3D printer can help you realize any number of design ideas. The J55 Prime introduces a rotating print platform for outstanding surface finish and printing quality and features multi-material capabilities and material configurations for both industrial and mechanical design.







Being a life long designer and industrial design advocate, I would say this is a tool that has the potential to impact your business from delivery to revenue almost immediately.

– Beta Customer

Compact

The best-in-class footprint to printing tray ratio on the market means less bulk in your office.

odor-Free

The J55 Prime's Aero Air Extractor captures and filters out fumes, for safe and odor-free 3D printing.

Ultra-Quiet

The J55 Prime operates under 53 decibels, about the same as a refrigerator.

Cost-Effective

Half the cost of the J826 shop solution.

Easy to Use

Requires zero mechanical calibrations and features a “ready-to-print” mode.

Quality

High resolution, fast prints, and a full-color range.






Stratasys J55 3D Printer



speed up the design process

Reduce time spent on manual models, incorporate color early, and iterate initial designs fast and often. CMF designs can be introduced weeks earlier than traditional methods allow, including parts printed with several colors and textures thanks to multi-material capabilities.

The Stratasys J55 3D printer Available from GoEngineer prints detailed designs

The Stratasys J55 3D printer Available from GoEngineer pantone validated prototypes

pantone validated colors

Improve the speed, efficiency, and color fidelity of your prototypes by 3D printing with PANTONE® colors. As a PANTONE Validated™ 3D printer, the J55 enables you to match Stratasys CMYK colors to more than 1,900 printable PANTONE Colors, Solid Coated and SkinTones™.







realistic prototypes

The J55 Prime lets you create parts that look and feel like the finished product using high-quality full-color materials and realistic surface finishing. Instead of spending your time and money outsourcing, create everything in-house. High fidelity prototypes let you verify designs efficiently, leading to quicker decisions and approvals.

The Stratasys J55 3D printer Available from GoEngineer prints high fidelity prototypes

Sample 3D Printed Part Using VeroUltra Stratasys 3D Printing Material



VeroUltra

VeroUltra WhiteS, VeroUltra BlackS, & VeroultraclearS

  • Impressive contrast and color separation
  • Smooth color transition
  • Can be combined with various materials
  • Superior capacity application

Potential applications:

  • Toy & figurine production
  • Consumer electronics
  • Packaging
  • Consumer goods



VERO

Realistic & Vibrant Colors

  • Multi-purpose, multi-color family of materials | CMYKBWV
  • Good stiffness and strength
  • lend together or with other materials to change properties

Potential applications:

  • Visually realistic prototypes
  • Fit, form, and function prototypes
  • Surgical models
  • Jigs, fixtures, & tooling



Sample 3D Printed Part Using Vero ContactClear Stratasys 3D Printing Material



Vero Contactclear

  • Biocompatible
  • Safe for skin or mouth contact
  • Rigid transparent

Potential applications:

  • Biocompatible prototyping
  • Wearables & fashion items
  • Skin & dental contact

DraftGrey PolyJet 3D Printing material



Draftgrey

  • Inexpensive
  • Rigid material
  • High-speed concept modeling

Potential applications:

  • Early stage prototypes
  • Concept modeling
  • Design prototyping



Stratasys Elastico PolyJet 3D Printing Material



Elastico

Clear & Black

  • Rubber-like
  • Tear-resistant
  • Flexing and bending

Potential applications:

  • Tooling
  • Sporting goods
  • General prototyping



Digital ABS Plus PolyJet 3D Printing material



Digital ABS Plus

Simulated ABS

  • Most mechanically robust PolyJet material
  • Combines temperature resistance with toughness
  • Good impact strength
  • 2 material blend

Potential applications:

  • Design verification
  • Functional testing
  • Jigs & fixtures
  • Manufacturing tooling



How Does it Compare to Current PolyJet Technology?

Stratasys J55 PolyJet Comparison Chart

Model Materials
  • Vero™ family of opaque materials including neutral shades and vibrant colors like VeroMagentaV and VeroYellowV
  • Transparent VeroClear™
  • DraftGrey™
Support Materials

SUP710™
WSS™ 150

Build Size

Stratasys J55 Prime: Up to 1,174cm²

Layer Thickness

Horizontal build layers down to 18 microns (0.0007 in.)

Workstation Compatibility
Windows 10
Network Connectivity
LAN - TCP/IP
System Size and Weight

System: 651 x 661 x 1551 mm (25.63 x 26.02 x 61.06 in.); 228 kg (503 lbs.)

Operating Conditions

Temperature 18-25 °C (64-77 °F); relative humidity 30-70% (non-condensing)

Power Requirements

100–120 VAC, 50–60 Hz, 6 A, 1 phase
220–240 VAC, 50–60 Hz, 3 A, 1 phase

Regulatory Compliance
CE, FCC, EAC
Software

GrabCAD Print

Build Modes

High-Quality Speed: 18.75um

Accuracy
  • Deviation from STL dimensions, for 1 Sigma (67%) of models printed with rigid materials, based on size: under 100 mm – ±150μ; above 100 mm – ±0.15% of part length.**
  • Deviation from STL dimensions, for 2 Sigma (95%) of models printed with rigid materials, based on size: under 100 mm – ±180μ; above 100 mm – ±0.2% of part length.**

GrabCAD Print powers Strataysys 3D printers. Learn More with GoEngineer.

GrabCAD Print

GrabCAD Print makes 3D printing easy, with thoughtful features:

  • Automatically corrects files and reduces print time with automatic tray arrangement.
  • Calculates the time and material resources needed for production before printing.
  • 3MF file supported – significantly simplifies color assignment in your workflow.
  • New feature alerts the user if there has been cross-contamination with a biocompatible material.
  • Schedule and monitor the print job remotely from your mobile device or browser.
  • Get automatic alerts remotely when the job is printing and finished.

LEARN MORE

Currently, no. The VeroUltraClear material is expected to be available near the end of 2020. This material will run independently and won’t require the VeroClear component to run with it.
Yes, the ProAero Air Extractor system is an optional unit.
PolyJet printing uses gel-like support materials designed to uphold complicated geometries and overhangs during the 3D printing process. Supports can be easily removed by hand or water.
1,174 cm 2 equates to a build volume of 140 mm x 200 mm x 190 mm and max printable height of 18.7 cm.
Yes! You can visit stratasys.com/recycle and fill out a free shipping label to return empty canisters back to Stratasys. They require you have at least four empty canisters to ship back.
