UltiMaker Factor 4+
High-flow dual extrusion, automated validation, and 2x faster printing.
Now Serving US & Canada

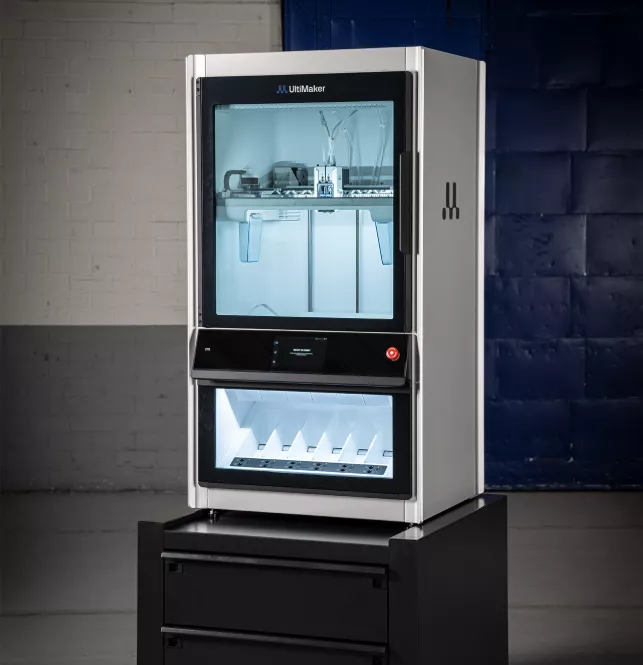

Industrial-grade 3D Printing Built for the Factory Floor
The UltiMaker Factor 4+ takes industrial FDM 3D printing to the next level, transforming your shop floor or field operation into an agile, continuous production environment. Engineered specifically for engineers, manufacturers, and defense applications, the Factor 4+ delivers up to twice the print speed of its predecessor without sacrificing dimensional accuracy.
Dual print head
Direct-drive dual extrusion with the Cheetah motion planner for precise printing at 2x speed.
Large Build Volume
Maximized 330 x 240 x 300 mm build space optimized for rapid, high-flow print cores.
Heated Build Chamber
Actively heated 70° C environment ensures warp-free, industrial-grade composite printing.
Smart Material Station
Front-loading 6-bay chamber with NFC tracking that keeps filament under 15% humidity.
“With the Factor 4 in combination with the Lehvoss materials we can really achieve applications that require higher specs in terms of dimm accuracy and reliability.”
– Thiago Medeiros Araujo
Market Development Manager
Features
built for the Factory Floor & Field Deployment
Factor 4+ sets a new standard for 3D printing in demanding industrial and defense manufacturing settings. Its triple-insulated build chamber is paired with an improved, ruggedized gantry system engineered to absorb severe vibrations during high-speed produciton. The automated material handling system maintains optimal filament quality, while the actively temperature-controlled design guarantees repeatable, continuous production output, even when printing complex geometries on remote factory floors or in harsh field operations.

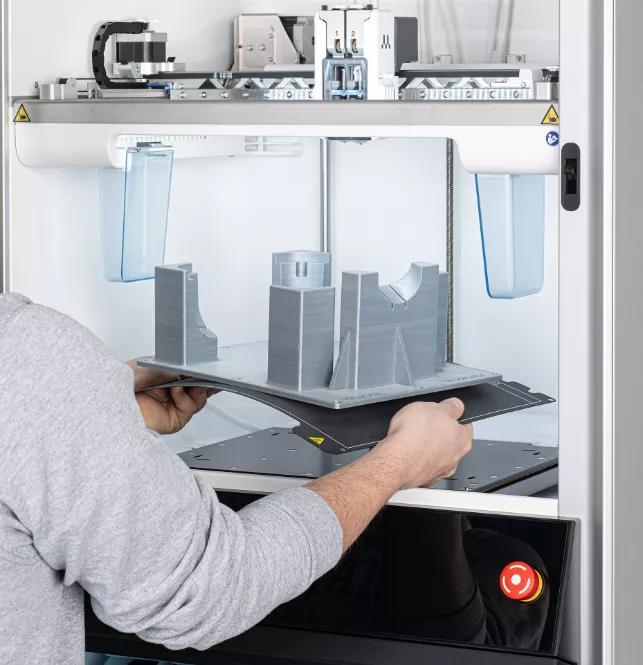

Reliable, Repeatable Results at Twice the Speed
Equipped with a flexible, magnetic build plate measuring 330 x 240 mm, the Factor 4+ provides the ultimate user experience with a specialized PEI coating for effortless, quick part removal. Driven by the revolutionary Cheetah motion planner, the Factor 4+ removes abrupt velocity changes to double print speed without compromising precision. Its exceptional dimensional accuracy remains verified within ±0.2 mm or ±0.2% feature nominal length across the entire build volume, allowing you to confidently leverage rapid dual extrusion for multi-material components and high-performance composites like PPS-CF.

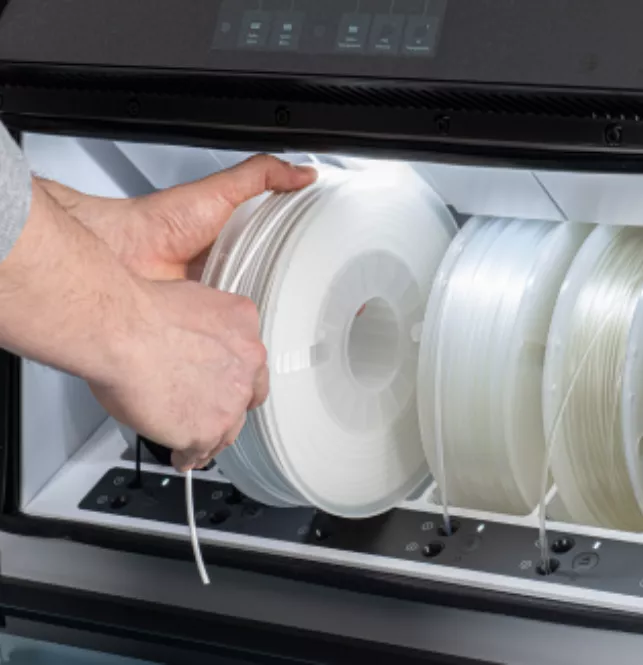

Hassle-free Material Handling
The automated material handling system seamlessly manages your spools, eliminating the need for manual intervention during active print jobs. Drop spools directly into the front-loading Material Station, where integrated NFC sensors automatically recognize and track material levels. The internal chamber is strictly insulated to maintain a relative humidity of less than 15% across all operational environemnts, keeping up to 6 kilograms of filament in pristine, dry conditions for uninterrupted, 24/7 production cycles.

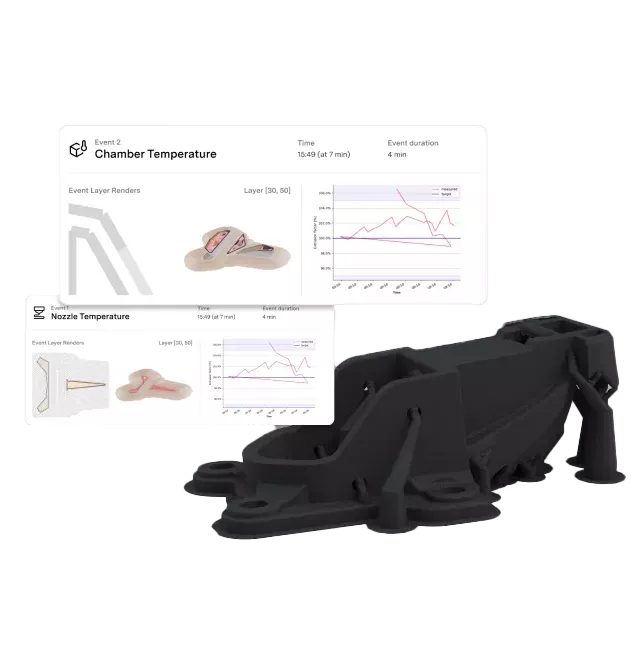

Seamless Software & Automated Part Validation
UltiMaker Cure and Digital Facotry work in harmony with the Factor 4+ to provide an industry-leading, secure workflow that rapidly slices native CAD files using pre-tuned profiles optimized for the high-speed AA+ and CC+ print cores. To take quality assurance to true production levels, the integrated UltiMaker TRACE software continuously monitors critical build metrics during operation, automatically generating a comprehensive CAD-validation report immediatly upon print completion. Combined with an onboard live HD camera feed, secure data encryption, and offline printing support, managing a fleet of mission-critical prints has never been easier or more reliable.
Factor 4+ Materials
|
|
PPS CF
 |
Hardness: 80 Shore D |
 |
Print Core: HT |
 |
Thermal: 230° C |
 |
Impact Strength: 4.8 kj/m² |
ABS
|
Hardness: 76 Shore D |
|
Print Core: 1AA |
|
Thermal: 87° C |
|
Impact Strength: 14 kj/m² |
Nylon
|
Hardness: 81 Shore D |
|
Print Core: AA |
|
Thermal: 89° C |
|
Impact Strength: 14 kj/m² |
PC
|
Hardness: 81 Shore D |
|
Print Core: AA |
|
Thermal: 111° C |
|
Impact Strength: 12 kj/m² |
Tough PLA
|
Hardness: 80 Shore D |
|
Print Core: AA |
|
Thermal: 58° C |
|
Impact Strength: 9 kj/m² |
PLA
|
Hardness: 84 |
|
Print Core: AA |
|
Thermal: 59° C |
|
Impact Strength: 4 kj/m² |
|
|
PETG
|
Hardness: 76 Shore D |
|
Print Core: AA |
|
Thermal: 76° C |
|
Impact Strength: 8 kj/m² |
|
|
CPE
|
Hardness: 76 Shore D |
|
Print Core: AA |
|
Thermal: 77° C |
|
Impact Strength: 6 kj/m² |
|
|
CPE+
|
Hardness: 77 Shore D |
|
Print Core: AA |
|
Thermal: 100° C |
|
Impact Strength: 37 kj/m² |
|
|
TPU 95A
|
Hardness: 48 Shore D |
|
Print Core: AA |
|
Thermal: 116° C |
|
Impact Strength: 24 kj/m² |
|
|
PP
|
Hardness: 42 Shore D |
|
Print Core: AA |
|
Thermal: 99° C |
|
Impact Strength: 49 kj/m² |
Factor 4+ Specifications
Printing properties
- Technology: Fused deposition modeling (FDM)
- Extrusion system: Dual-extrusion, direct drive print head with unique auto-nozzle
lifting system and swappable print cores - Motion Architecture: H-bridge gantry integrated with Cheetah motion planner and input shaping resonance compensation
- Build volume: Single material printing: 330 x 240 x 300 mm (13 x 9.4 x 11.8 in)
Dual material printing: 330 x 240 x 300 mm (13 x 9.4 x 11.8 in) - Filament diameter: 2.85 mm
- Print profiles availability :14+ UltiMaker materials
200+ UltiMaker Marketplace materials - Dimensional accuracy: ± 0.2 mm ± 0.2 % feature nominal length.
Hardware properties
- XYZ resolution: 6.25, 7.8, 2.5 micron
- Homing sensor: Optical
- Build plate: PEI-coated flexible build plate
- Build plate temperature: Up to 120 °C
- Build volume temperature:
- Actively controlled up to 70 °C with nozzle plane temperature uniformity within:
- ± 3 °C for temperatures < 50 °C
- ± 5 °C for temperatures < 70 °C
- Extrusion flow: Closed loop flow compensation
- Max. extrusion temperature:
- 280 °C: Print core AA, AA+, BB, DD
- 300 °C: Print core CC
- 340 °C: Print core HT, CC+
- Compatible print cores:
- Print core AA+ (High-Flow, 0.4 mm - Included)
- Print core CC+ (High-Flow, 0.6 mm - Included)
- Print core AA (0.25 mm, 0.4 mm, 0.8 mm)
- Print core BB (0.4 mm, 0.8 mm)
- Print core CC (0.4 mm, 0.6 mm)
- Print core DD (0.4 mm) – available in selected regions
- Print core HT (0.6 mm)
- Closed loop fans: Air filtering fan, air recirculation fans, print cooling fans, print core cooling fan
- Material handling capacity: 6 bays with NFC recognition (max. 1 kg spool size)
- Material humidity control: Average relative humidity < 15 % in all operational conditions
- Filtration system: HEPA H13
- Emission rate (UFP & VOC): UltiMaker filaments below limits listed in UL-2904
- Monitoring HDR: (high dynamic range) 1920 x 1080 px HD camera
- Display: 7-inch touchscreen (resolution 1024 x 600 px, mounted higher for optimized visibility)
- Connectivity:
- Wi-Fi 2.4 & 5 GHz: IEEE 802.11a/b/g/n/ac
- LAN: Gigabit Ethernet
- USB: 2.0
- System on module: NXP i.MX8 Mini Quad (4 x 1.8 GHz), ARM Cortex-A53, 2 GB LPDDR 4 16 GB eMMC
- Real time controller: i.MX RT1064, Arm Cortex-M7 600 MHz, 1 MB SRAM
- Power requirement: 100 – 240 V AC, 50 – 60 Hz max., 6A
Physical dimensions
- Dimensions: 695 x 605 x 1287 mm (27.5 x 24 x 51 in)
- Weight: 120 kg (265 lbs)
- Shipping dimensions: 760 x 800 x 1587 mm (30 x 31.5 x 62.5 in)
- Shipping weight :137 kg (309 lbs)
Ambient conditions
- Operating sound: < 50 dBA in operation
- Operating environment:
- Operating: Temperature: 18 °C – 30 ºC, humidity: 30 – 70% RH
- Storage: Temperature: 5 °C – 40 ºC, humidity: 20 – 90% RH
Software
- Print job preparation: UltiMaker Cura 5.7.1 or newer
- Print job management: UltiMaker Digital Factory
- File types supported:
- UltiMaker Cura: STL, OBJ, 3MF, STEP
- Printable formats: G, GCODE, UFP, STEP
- System requirement:
- Windows 10/11 (64-bit), Mac OS 11 or newer, OpenGL 2.1
- 4 GB RAM (8 GB recommended)
- Print process reporting: Fully automated via TRACE software ecosystem
- Security: Active firewall, PIN code settings protection, data encryption, and air-gapped/offline local printing capability
Safety and compliance
- Warranty period: 12 months limited warranty
- Safety features: Red stop button immediately stops motion and heat sources, open door sensor pauses motion and extrusion
Software
UltiMaker Cura
Ensure a straightforward, secure, and dependable workflow from 3D model to finished print:
- UltiMaker Cura: Easy print preparation for manufacturing
- Onboard structural integrity validation.
- UltiMaker Digital Factory: Secure, efficient 3D printing management.
- Modularity at your service.
UltiMaker TRACE
Automated part-level validation for rigorous industrial compliance:
- Technical Reporting and Certification Engine: Continuously logs and analyzes extrusion factors, nozzle heat, and chamber temperatures during operation.
- Instant CAD-validation reports: Automatically generates a comprehensive quality assurance report immediately upon print completion for total production traceability.
