Artec Micro II
Metrology-Grade Precision on Your Desktop
Automated Desktop Metrology
The Artec Micro II completely redefines what's possible for small-object digitization. Engineered for high-precision quality control, industrial reverse engineering, jewelry design, and dental applications, this fully automated desktop system delivers stunning 5-micron accuracy with just a single click.
Unlike handheld options, the Micro II features a synchronized 3-axis rotation and swing system that repositions your part entirely hands-free. Simply place an item on the platform, and the scanner's smart pathing algorithms instantly map out the most efficient, complete scanning trajectory, capturing hard-to-see areas without needing messy targets or markers.
Features
5-Micron Metrology Precision
Delivers ISO 12836 certified accuracy with an unmatched 2-micron repeatability. This ensures highly trustworthly, industrial-grade data for demanding quality control and inspection applications.
Automated Quad-Cam Capture
Combines four high-resolution 13 MP cameras with a synchronized 3-axis rotation system. The scanner automatically maps the ideal path to see deep inside complex cavities, sharp edges, and miniature threads completely hands-free, zero targets required.

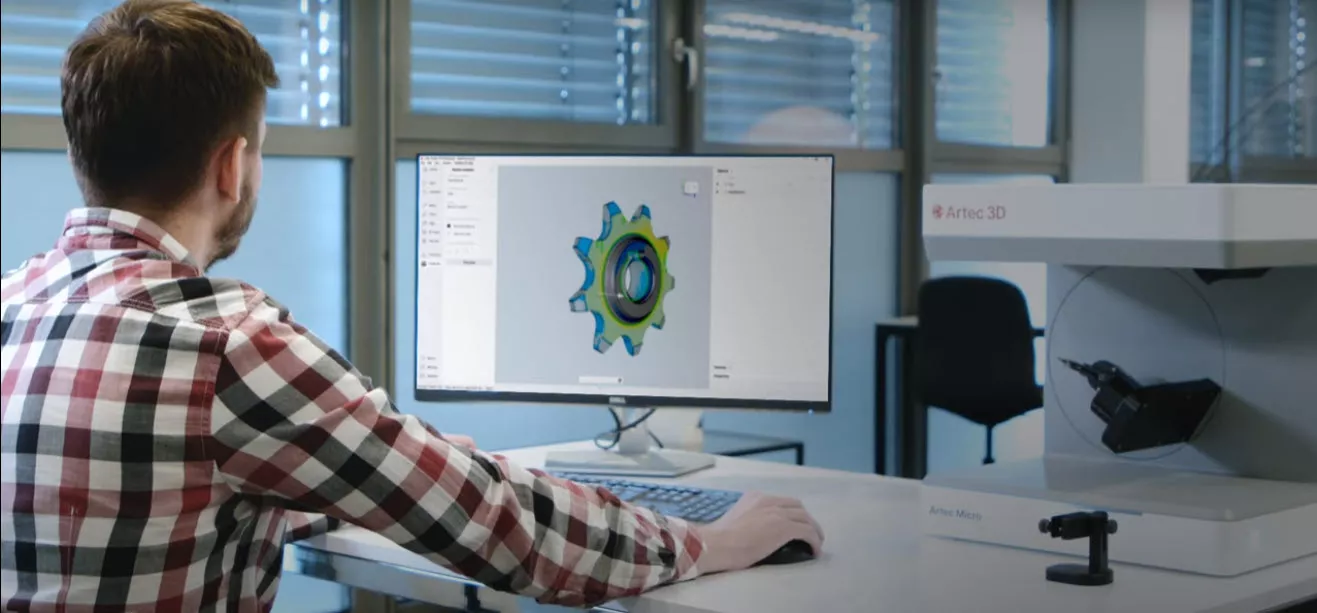

Seamless Scan-to-CAD Integration
Streamlines reverse engineering workflows by allowing you to extract geometric primitives and export clean polygonal meshes directly from Artec Studio into standard CAD environments like SOLIDWORKS.

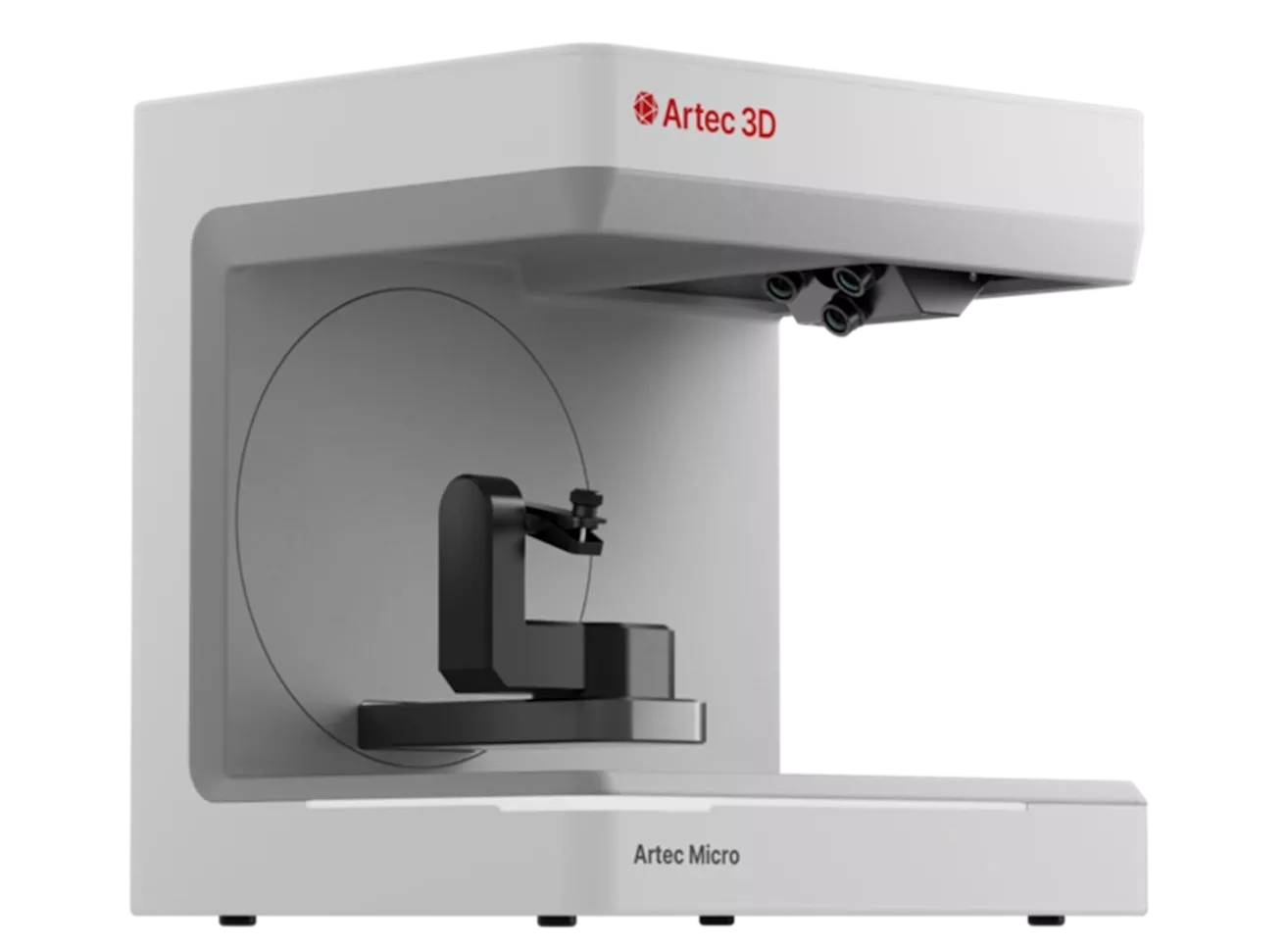

specifications
| 3D Point Accuracy | Up to 5 microns (0.005 mm) | |
| Repeatability | 2 microns (0.002 mm) | |
| Accuracy Certification | ISO 12836 | |
| Cameras | 4 x 13 MP resolution cameras | |
| Light Source | RGB LED (Blue LED structured light) | |
|
Max Object Size |
Up to 20 x 20 x 15 cm |
|
| Capture Volume | 6,000 cm³ | |
| Data Acquisition Speed |
1,000,000 points/second |
|
| Interface |
USB 3.0 |
|
| Dimensions & Weight |
396 x 405 x 337 mm | 12 kg (26.5 lbs) |
|
| Mesh Output Formats |
STL, OBJ, PLY, WRL, AOP, ASC, PTX, E57, XYZRGB |
|
| CAD Output Formats |
STEP, IGES, X_T |
|
| Recommended PC Specs |
Intel Core i7/i9, 64+ GB RAM, NVIDIA GPU (3+ GB VRAM, CUDA 3.5+) |
|

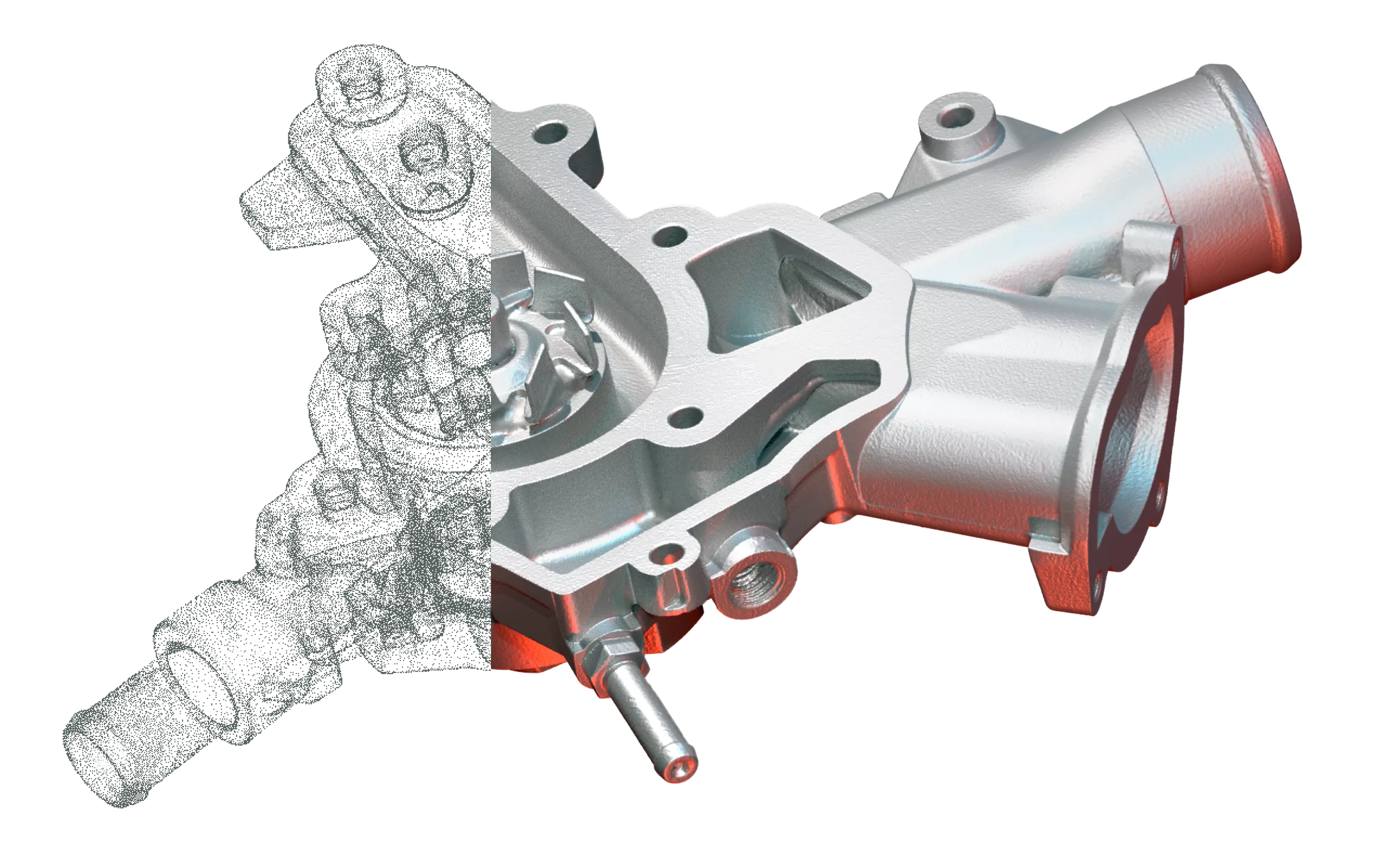

Software
Artec Studio
From Raw Scan To CAD
Artec Studio is the advanced software engine that transforms raw data into production-ready 3D models. It simplifies data processing with an automated Autopilot mode for quick, guided workflows, while leveraging a powerful AI-driven HD Mode to eliminate scan noise, resolve sharp edges, and dramatically enhance mesh resolution across supported hardware. Beyond simply processing meshes, the software features built-in Scan-to-CAD tools for fitting geometric primitives, basic metrology for full-color deviation heat mapping, and seamless direct exports to industry-standard engineering platforms like SOLIDWORKS, and Geomagic Design X, effectively bridging the gap between your physical object and an editable CAD environment.
Frequently Asked Questions
The system includes multiple modular, CNC-machined magnetic mounts, including specialized pinch clamps, flat mounts, and a motorized rotational stage accessory. Allowing you to easily swap and secure different part shapes with pogo-pin connectivity.
