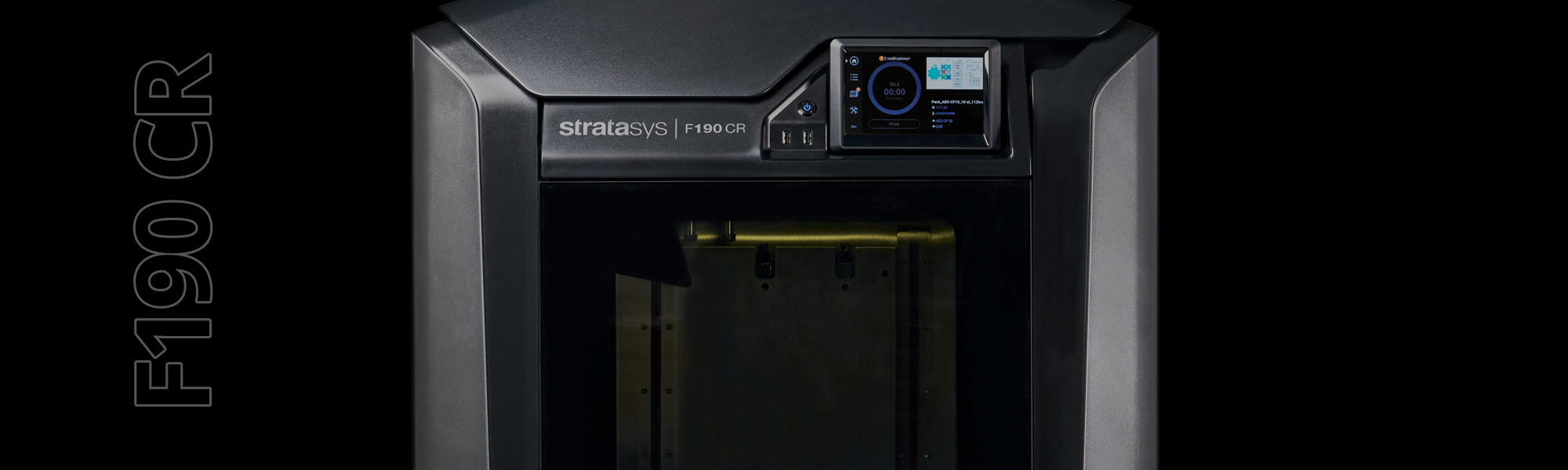

STRATASYS F190CR

A Composite Ready Industrial FDM 3D Printer

Stratasys F190CR Composite Ready FDM 3D printer available at goengineer

high strength composite printing

The Stratasys F190CR allows you to meet deadlines and stay on budget, with high strength composite printing.

  • Equipped with hardened components to operate with composite materials
  • Print carbon fiber-reinforced materials like ABS-CF10 and Nylon CF10
  • Ideal for workholding fixtures, soft jaws, and component parts
    with composite 3D printing
  • Print parts in a fraction of the time and cost
    it takes to machine a metal equivalent.









Open Stratasys F370 CR 3D Printer.



unmatched uptime

F123CR printers are built on the same platform as the proven F123 Series, with a verified 99%- uptime and a 99%-dimensional repeatability performance

Setup 3D Prints for the Stratasys F123 CR printers with GrabCAD.



Simple setup, and GO

You don’t need special training to operate F123CR printers. Job setup simply involves importing the part’s CAD file using GrabCAD Print™ software and initiating the print.

Stratasys F123 CR 3D Printers feature Hands on Support.



Support

Stratasys invented FDM Technology, and has been perfecting it for over 30 years. GoEngineer's Stratasys technicians and application engineers know how to maximize your printer
investment.


  • Buy ABS CF10 Stratasys Material from GoEngineer
  • ABS-CF10

  • Potential Applications:
    – Tooling
    – Jigs and fixtures
    – Production and assembly
    – Drill guides
  • ABS-CF10 Combines standard ABS material with 10% carbon fiber by weight . This makes for a 50% stiffer than standard ABS 3D printing material and 15% stronger than standard ABS 3D printing materials.

  • Learn More >

  • Stratasys ABS-M30 3D Printing Material for FDM
  • ABS-M30

  • Potential Applications:
    – Conceptual models
    – Functional prototypes
    – Manufacturing tools
    – Production parts
  • ABS-M30 FDM material enables you to prototype quickly and efficiently. This strong, familiar material lets you explore more ideas, test frequently, work iteratively – and ultimately take better products to market faster.
  • Learn More >

  • Stratasys ASA FDM 3D Printing Material
  • ASA

  • Potential Applications:
    – Conceptual models
    – Functional prototypes
    – Manufacturing tools
    – Production parts
  • Mechanical strength and UV stability make ASA a great choice for functional prototyping. Ease of use makes it a top pick for iterative design. Outstanding aesthetics and ten fade-resistant colors make it an all-around favorite, even for end-use parts.
  • Learn More >

  • Stratasys FDM TPU 92A 3D Printing Material
  • FDM TPU 92A

  • Potential Applications:
    – Hoses, tubes, air ducts
    – Protective covers & seals
    – Vibration dampeners
    – Prototype and end-use parts

  • Thermoplastic polyurethanes otherwise known as TPU’s are flexible elastomers found in products that require a soft touch, shock absorption, or a comforting grip. They are commonly co-molded or over-molded onto ABS and Polycarbonate substrates in sunglasses and phone/tablet cases.

  • Learn More >

  • Stratasys Nylon CF10 3D Printing Material for FDM
  • Nylon CF10

  • Potential Applications:
    – Metal component replacement
    – Production parts
    – Tooling
  • 3D printing with carbon fiber material lets you build strong, stiff, lightweight tools and parts. FDM Nylon CF10 combines nylon and carbon fibers to achieve a high flexural strength and stiffness-to-weight ratio.

  • Learn More >



System Size and Weight
  • 1626 x 864 x 711 mm (64 x 34 x 28 in.)
  • 227 kg (500 lbs.)
BUILD ENVELOPE
  • 305 mm x 254 mm x 305 mm (12 x 10 x 12 in.)

MATERIALS

  • ABS-CF10, ABS-M30, ASA, FDM Nylon-CF10, FDM TPU 92A, QSR Support material

MATERIAL DELIVERY

  • 2 material spool bays, 1 for model, 1 for support located in a drawer on the front of the unit

ACHIEVABLE ACCURACY

  • Parts are produced within an accuracy of +/- .200 mm (.008 in), or +/- .002 mm/mm
    (.002 in/in), whichever is greater
SOFTWARE
  • GrabCAD Print, MTConnect enabled

Operator Attendance

  • Limited attendance for job start and stop required

OPERATING CONDITIONS

  • Operating temperature: 15 – 30 ºC (59 – 86 ºF), Humidity: 30 – 70% RH
  • Storage temperature: 0 – 35 ºC (32 – 95 ºF), Humidity: 20 – 90% RH

POWER REQUIREMENTS

  • 100-132V/15A or 200–240V/7A. 50/60 Hz

operating System

  • Windows 10 (64 bit only) and Window 11 with a minimum of 4GB RAM
    (8GB or more recommended)

Regulatory Compliance

  • CE (low-voltage and EMC directive), FCC, EAC, cTUVus, FCC, KC, RoHs, WEEE, Reach, RCM

Wireless Network Connectivity

  • Wired: TCP/IP protocols at 100 Mbps minimum 100 base T, Ethernet protocol, RJ45 connector
  • Wireless-ready: IEEE 802.11n, g, or b; Authentication: WPA2-PSK, 802.1x EAP Encryption:
    CCMP, TKIP

GrabCAD Print powers Strataysys 3D printers. Learn More with GoEngineer.

GrabCAD Print

make 3D printing easy, with thoughtful features:

  • Automatically corrects files and reduces print time with automatic tray arrangement.
  • Calculates the time and material resources needed for production before printing.
  • 3MF file supported – significantly simplifies color assignment in your workflow.
  • New feature alerts the user if there has been cross-contamination with a biocompatible material.
  • Schedule and monitor the print job remotely from your mobile device or browser.
  • Get automatic alerts remotely when the job is printing and finished.
