Stratasys ProLight Cure Box
Optimized post-processing for high-quality PolyJet prints
Now Serving US & Canada

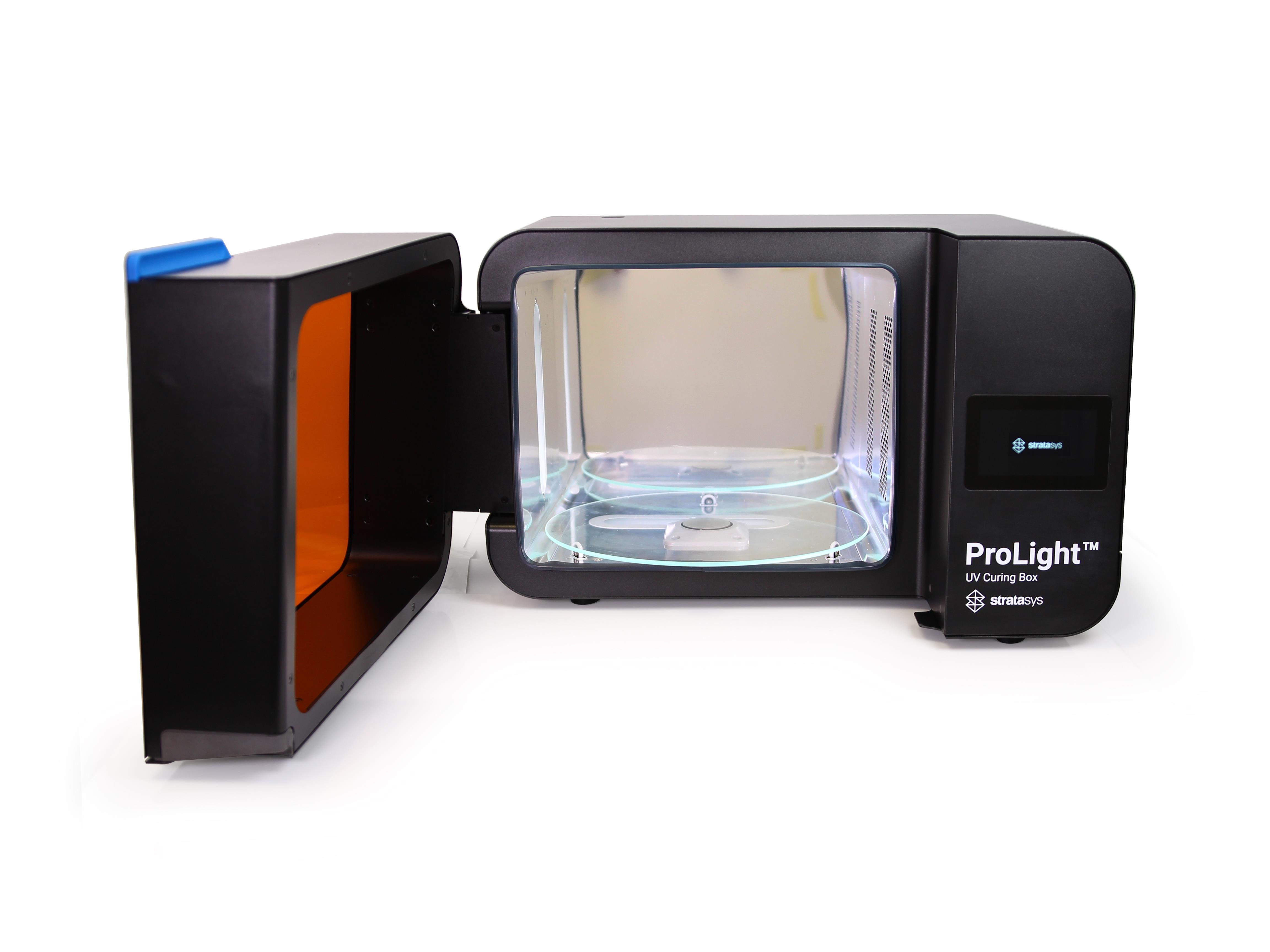

Advanced UV Curing for Superior PolyJet Results
The ProLight Cure Box delivers precise post-processing with a 450 nm LED light source and controlled chamber heating up to 80° C. This combination ensures consistent, reliable curing that enhances mechanical strength, clarity, and long-term durability across a wide range of PolyJet materials.
Optimized for Tough, Clear, and Dental-Grade Materials
Engineered to support advanced resins such as ToughONE, TrueDent, Vero, and Agilus, the ProLight Cure Box elevates the performance and appearance of functional prototypes, transparent components, dental appliances, and larger-scale printed parts. Its controlled photobleaching process provides the finish and quality required for professional production environments.
Features
-
Rotating turntable for uniform, consistent results
-
Simple touchscreen controls with preset curing recipes
-
Large chamber for bigger or complex PolyJet parts
-
Safety interlock that stops curing when the door opens
Dental Materials for Any Application
Stratasys printers are scaled to meet diverse needs in capability and production capacity for dental labs. Take advantage of a range of dental materials, including certified biocompatible materials that empower cost effective interventions, and enhanced patient outcomes.
toughone
A durable PolyJet material that combines high impact strength with excellent detail and surface finish. Ideal for functional prototypes, snap-fit parts, and production applications where toughness and precision are essential.
Recommended Printers:
vero
A versatile, rigid PolyJet photopolymer optimized for accurate, multi-color 3D printing. It delivers strong detail resolution, stiffness, and smooth finish, making it ideal for realistic prototypes, assemblies, tooling, and concept models in a wide color gamut.
Recommended Printers:
truedent
An FDA-cleared PolyJet resin that allows dental labs to print highly aesthetic, full-color dentures monolithically. This single-print solution eliminates assembly while delivering exceptional strength, wear resistance, and accurate fit for permanent appliances.
Recommended Printers:
agilus30
A flexible, rubber‑like PolyJet photopolymer that stands out for tear resistance and repeated flexing. It simulates the look, feel and function of rubber, and is ideal for soft-touch parts, overmolds, seals, hinges and other flexible prototypes.
Recommended Printers:
prolight Cure Specifications
Compatible materials
- ToughONE
- Vero
- TrueDent
- Agilus30
light source
45 multi-directional 450 nm LEDs
MAXIMUM POST-CURE TEMPERATURE
76° F (80° C)
CURING VOLUME
Cylinder 15.6 in. (39.5 cm) in diameter and 12.6 in. (32 cm) tall
TURNTABLE DIAMETER
15.6 in. (39.5 cm)
PRODUCT DIMENSIONS
27.2 x 21.3 x 17.5 in. (69 x 54 x 44.5 cm)
UNIT CONTROL
Interactive touchscreen
CONNECTIVITY
Wi-Fi: 2.4 GHz
Ethernet: 100 Mbit
USB: 2.0
POWER REQUIREMENTS
Input (NA): 110–120 VAC, 50–60 Hz, 15 A max
Input (EU): 220–240 VAC, 50–60 Hz, 8 A max
AMBIENT TEMPERATURE
18–28° C / 64–82° F
